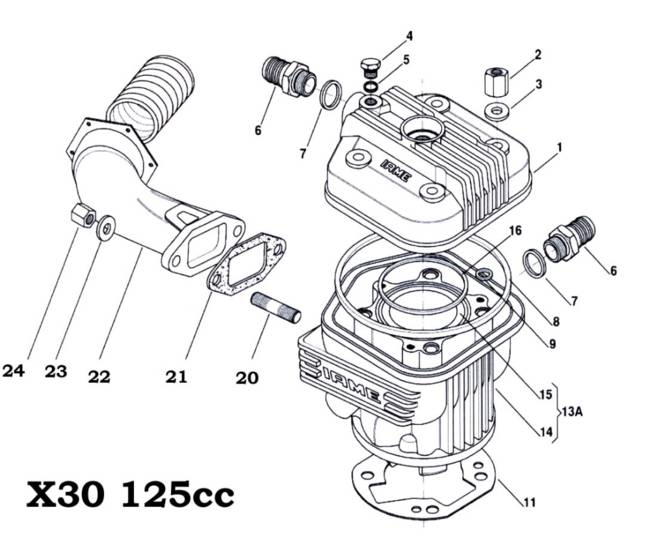

X30 CYLINDER & HEAD
| Page: | 1 | 2 | > |
| 8MM X 42MM EXHAUST STUD IAME GENUINE IAME X30 [UP DATE 2019 EXHAUST ] 8MM X 42MM EXHAUST STUD 14MM THREAD/8MM SHANK / 20MM THREAD $8.25 | |
|---|---|---|
| EXHAUST FLEX HEADER GENUINE IAME EXHAUST FLEX 130MM LONG , LARGE TO SUIT 125CC AND 135CC ENGINES [ALSO THE ORIGINAL ARC PISTON PORT WITH LARGE HEADER ] $30.80 | |
| EXHAUST FLEX SLEEVE 125 SILOCONE SLEEVE SUITS YAMAHA AND 125/135 CC FLEX $28.99 | |
| GASKET EXHAUST X30 NON GENUINE EXHAUST GASKET ROTAX DSB ON /PARILLA 100cc AND 125cc X30 AND KA100 REED JET [KA NON GENUINE] 25MM X 42MM X 8MM HOLE 68MM CENTER TO CENTER $5.28 | |
| GASKET EXHAUST X30 KA GENUINE GENUINE EXHAUST GASKET TO SUIT X30 AND KA 42 X 25 X 8MM HOLE ALSO SUITS ROTAX [1989] DSB ON $9.80 | |
| HEAD/EXHAUST NUT 8MM SEALING SEALING NUT FOR EXHAUST OR CYLINDER HEAD 8MM X 25MM 13MM HEX $4.40 | |
| IAME X30 EXHAUST MANIFOLD SPACER 3MM GENUINE IAME EXHAUST SPACER MANIFOLD X30 2019 UPDATE 3MM THICK $22 | |
| No 1 CYLINDER HEAD GENUINE CYLINDER HEAD $297 | |
| No 4 TEMP FITTING PLUG X30 & RL GENUINE IAME BLANKING PLUG CYLINDER HEAD X30 AND RL LEOPARD [B25840] AND DRAIN PLUG FOR X30 CRANKCASE $5.50 | |
| No 11 GASKET CYLINDER BASE .5MM NON GENUINE CYLINDER BASE GASKET MADE FROM ELEPHANTIDE [SAME GENUINE GASKETS ]MATERIAL .020''/.5MM THICK $4.95 | |
| No 11 GASKET CYLINDER BASE .08MM NON GENUINE CYLINDER BASE GASKET MADE FROM NOMEX MATERIAL .003''/.08MM THICK $3.91 | |
| No 11 GASKET CYLINDER BASE .12MM NON GENUINE CYLINDER BASE GASKET MADE FROM ELEPHANTIDE [SAME GENUINE GASKETS ] MATERIAL .005''/.12MM THICK $3.91 | |
| No 11 GASKET CYLINDER BASE .25MM NON GENUINE CYLINDER BASE GASKET MADE FROM ELEPHANTIDE [SAME GENUINE GASKETS ] MATERIAL .010''/.25MM THICK $3.91 | |
| No 11 GASKET CYLINDER BASE .38MM NON GENUINE CYLINDER BASE GASKET MADE FROM ELEPHANTIDE [SAME GENUINE GASKETS ] MATERIAL .015''/.38MM THICK $3.91 | |
| No 11 GENUINE X30/KA GASKET CYLINDER BASE .1MM GENUINE IAME KA/X30 CYLINDER BASE GASKET PLASTIC .1MM $8.47 | |
| No 11 GENUINE X30/KA GASKET CYLINDER BASE .05MM GENUINE IAME KA/X30 CYLINDER BASE GASKET PLASTIC .05MM $8.47 | |
| No 11KIT COMPLETE GASKET AND O RING SET X30 $33 | |
| No 11KIT COMPLETE GASKET AND O RING SET X30 GENUINE GENUINE IAME X30 ENGINE COMPLETE GASKET SET [X30125991] $51.70 | |
| No 11KIT COMPLETE GASKET AND SEAL SET X30 COMPLETE GASKET , O RINGS AND SEALS . CYLINDER BASE GASKET .08MM ,0.012MM , .025MM , .038MM AND .05MM $59.40 | |
| No 13A CYLINDER ASSY INCLUDING LINER X30 GENUINE IAME X30 CYLINDER ASSY, $990 | |
| No 13A CYLINDER ASSY INCLUDING LINER X30 FROM NEW ENGINE CYLINDER ASSY TAKEN FROM NEW NEVER RUN ENGINE INCLUDES PISTON AND RING $990.00 Sale $880 | |
| No 22 X30 EXHAUST HEADER GENUINE IAME X30 HEADER TAKES 125 FLEX SUITABLE FOR THE USE IN SOME HISTORIC ENGINE [40mm width x 85mm flange 68mm hole spacing x 8mm] INSIDE MEASUREMENT FROM BOLT UP FLANGE TO END OF HEADER AT FLEX 165MM $154.33 | |
| No 24 NUT EXHAUST HEADER IAME X30 $5.50 | |
| No 24 NUT EXHAUST HEADER IAME X30 2018 UPDATE $6.60 | |
| No 451A EXHAUST MANIFOLD X30 2018 UPDATE GENUINE IAME EXHAUST MUFFLER OPEN MANIFOLD 2018 UPDATE [X30125370] $85.80 | |
| No 451A EXHAUST MUFFLER X30 2018 UPDATE GENUINE IAME EXHAUST MUFFLER BARE 2018 UPDATE [X30125715] $357.50 | |
| No 451A EXHAUST RESTRICTED MANIFOLD X30 2020 UPDATE 22.7MM GENUINE IAME X30 2020 UPDATE 22.7MM RESTRICTED EXHAUST MANIFOLD $108.41 | |
| Nut Cylinder Head 8MM x 13MM $4.40 | |
| SPRING EXHAUST KA 100 REED JET GENUINE IAME HEADER SPRING TO SUIT KA REED JET AND X30 2018 UPDATE $9.57 | |
| STORAGE THREADED SPARK PLUG MEDIUM RIGHETTI RIDOLFI PLASTIC STORAGE PLUG MEDIUM SUIT X30 ENGINES [KM190R] $6.38 |
